TürkçeOctoPASS Tentacle Mifare Bio ''Fingerprint + Card + TFT Screen''

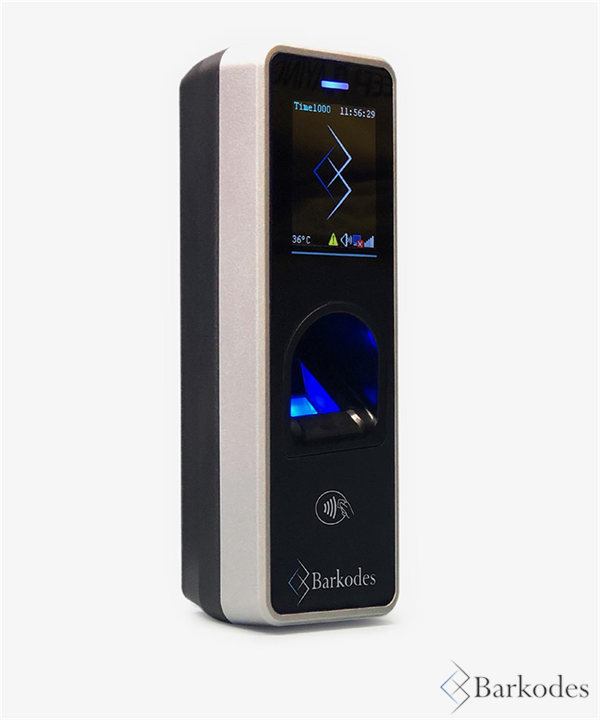

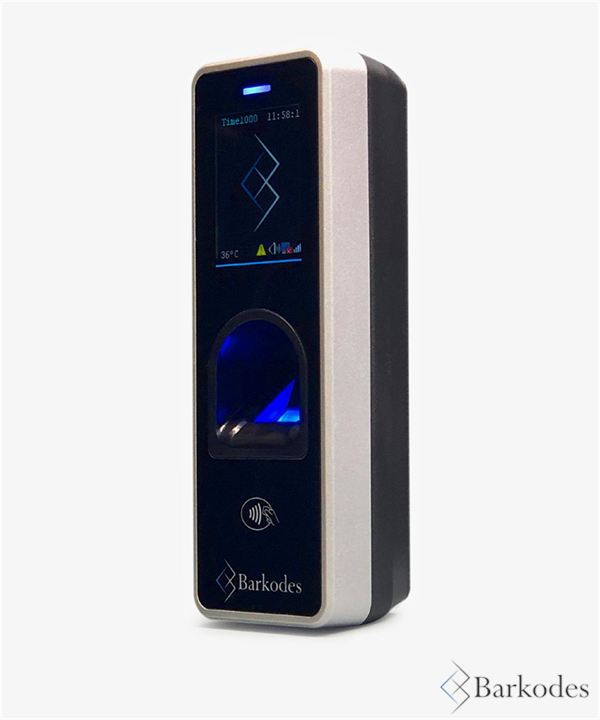

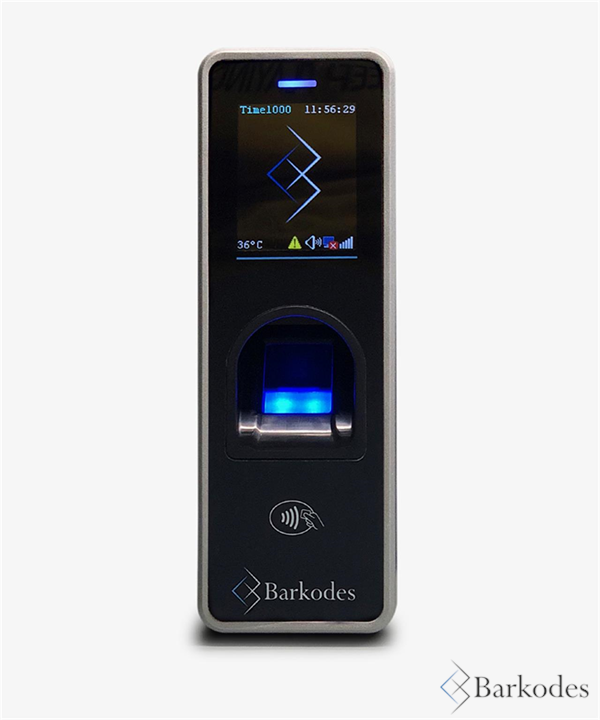

OctoPASS Tentacle Mifare Bio ''Fingerprint + Card + TFT Screen''
OctoPASS Tentacle MF BIO Card Reader is designed for Attendance Control Systems, Access Control Systems and Cafeteria systems with its card reading features. It has a reliable, accurate and excellent verification speed with its special algorithm. OctoPASS System, a smart and manageable card reader that can especially work ONLINE, is the only Card Reader system that has the ability to enter and exit your business according to the defined and approved shift in the Attendance Control program.
HARDWARE FEATURES
Input Voltage: 8V - 28V , CPU: 48MHz 32 Byte Cortex-M0, Fingerprint reader,: YES, Screen: YES, Communication: RS485, Buzzer: YES, LED: YES, Device Security Alarm: Optional, Operating Temperature: (-20, +70)
RF FEATURE
RF Operating Frequency: 13.56 Mhz, RF Reading Distance: 2 - 10 cm, Card Support: MIFARE Classic 1K/4K, ID Reading Only (MIFARE, Ultralight, DesFire) Standard Support: ISO 14443 A/B
OPERATING FEATURES
Working Mode: Online Only, Fingerprint User Memory: 3000, Antipasssback: YES, Sequential Reading Control: YES, Remote Update: YES
