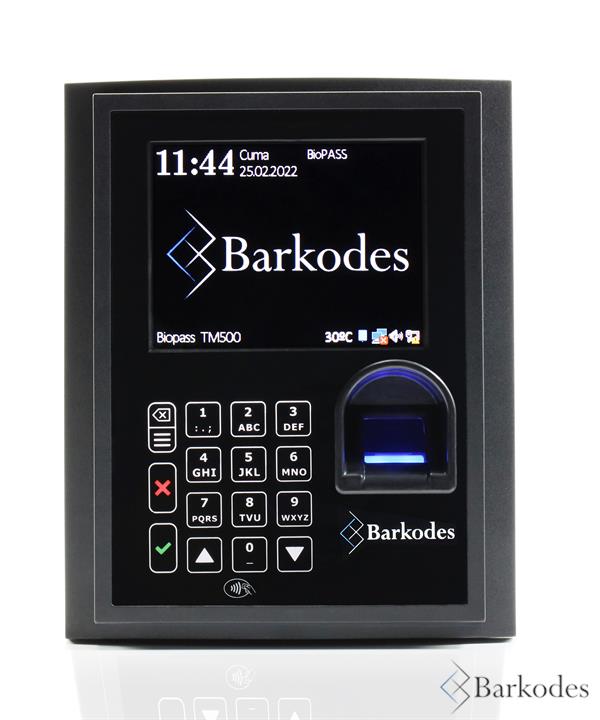

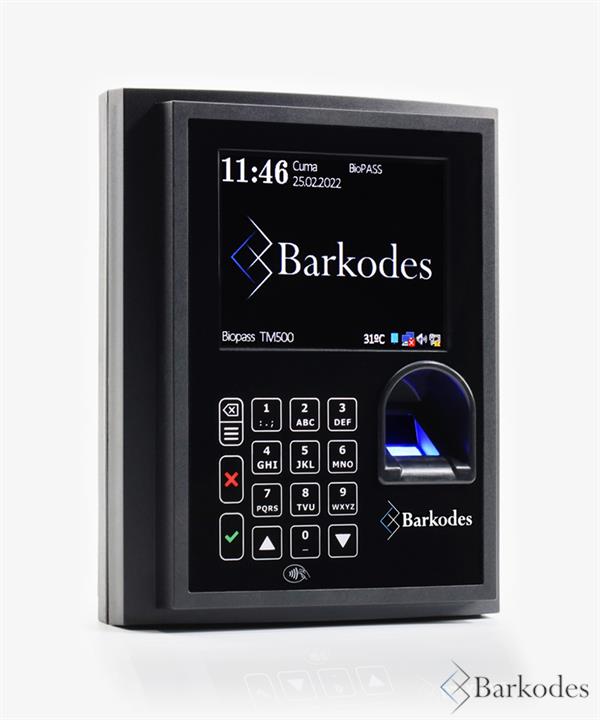

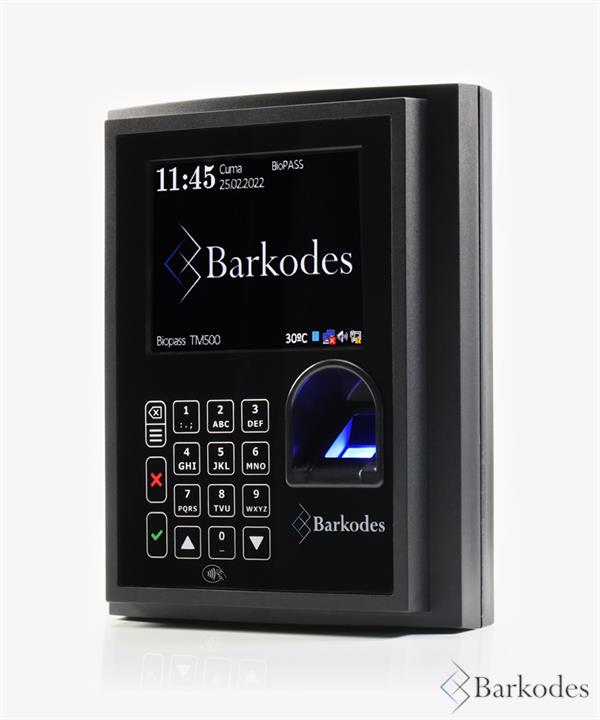

BioPASS Smart Fingerprint Reader, the first and only fingerprint reading and verification system via smart card in accordance with the Personal Data Protection Law in Turkey, is designed for personnel tracking, Personnel Attendance Control Systems, Cafeteria Control, Access Control Systems and businesses with high-security levels, with its special algorithm. It is a fingerprint device that is reliable, accurate and has excellent verification speed. Powerful performance, high image quality and an optical fingerprint sensor are among the main features of the BioPASS Smart Fingerprint reader. With BioPASS Smart, your most valuable personal data is always safe.

HARDWARE FEATURES

Input Voltage: 8V-28V (Poe 8V-60V), Screen: TFT (320*240) 3.5', Ethernet: 10/100 Mbps, CPU: 120MHz 32Bit Cortex-M4, Keypad: Yes (Touch), Buzzer, Optical Input, Solid State Relay, RTC, Temperature Sensor, Operating Temperature: (-20, +70), External Communication: (I2C, UART, SPI, GPIOx5, Analogx2),

RF FEATURES

RF Operating Frequency: 13.56 MHz, RF Reading Distance: 2 ~ 10 cm, Card Support: MIFARE Classic 1K/4K, Standard Support: ISO 14443 A/B,

OPERATING FEATURES

Working Mode: Online or Offline, Antipassback, Pass with Excuse Notification, Cards per Person: 3, Person Based Pass Modes, Sequential Reading Control, Zone Control Pass: Only with Card*, User Memory: Unlimited, Fingerprint Memory: Unlimited, Pass Gestures Memory: 125,000, Device Movement Memory: 29,000, Authorized Person Registration Memory: 15,000, Blacklist Memory: 8,000, Rights Definition Table: 24 hours * 78 different groups, Automatic On-Off, Personal Message, Announcement Broadcast, Automatic sending of Offline Records Online , Language: Turkish/English, Theme Selection, Remote Update
