TürkçeSlimPASS Bio Mifare PRO ''Fingerprint + Card + WI-FI''

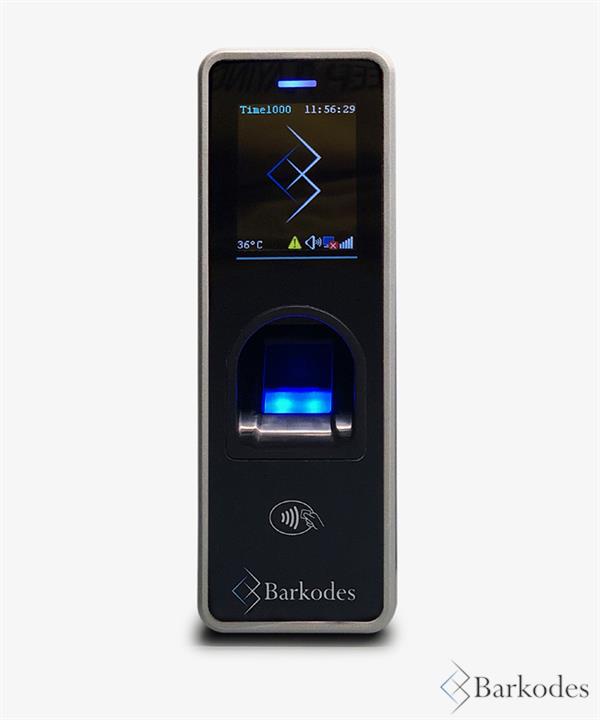

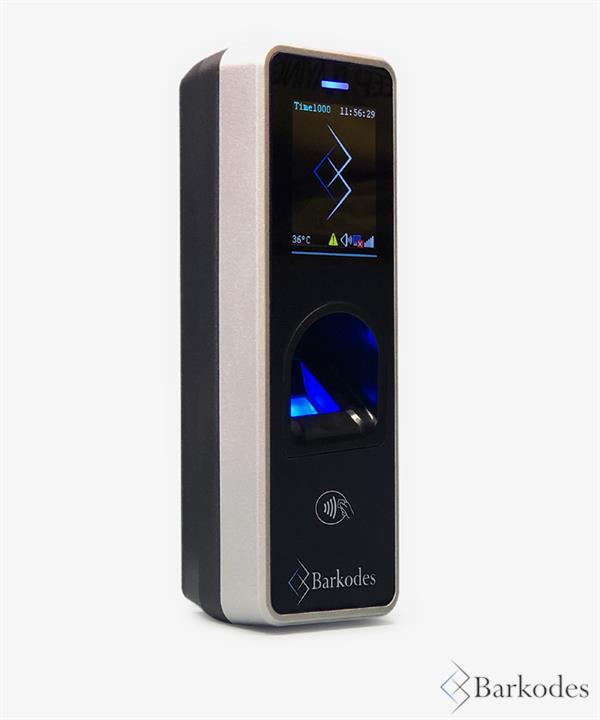

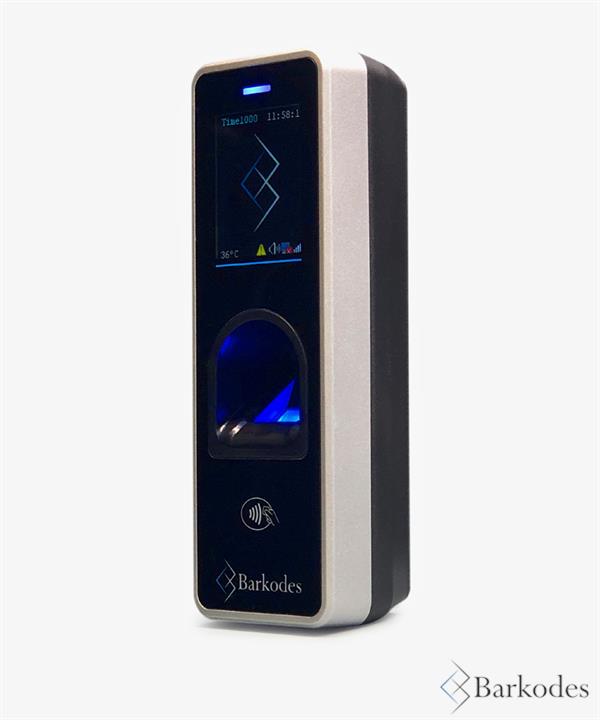

SlimPASS Bio Mifare PRO ''Fingerprint + Card + WI-FI''
SlimPASS Pro WI-FI Fingerprint Reader is designed for Personnel Attendance Control Systems, Access Control Systems and Cafeteria system with its fingerprint and card reading features. ıt has a reliable, accurate and excellent verification speed with its special algorithm. The smart and manageable card reader system, which can especially work ONLINE or OFFLINE, is the only Card Reader system that can enter and exit your business according to the defined and approved shift in the program.
OPERATING FEATURES
Working Mode: Online or Offline, Antipassback: Yes, Pass with Excuse Notification: Yes, Card Per Person: 1, Person Based Pass Modes: Yes, Sequential Reading Control: Yes, Fingerprint User Memory: 3000, Card User Memory: 20000, Pass Movement Memory: 100000, Device Movement Memory: 35000, Blacklist Memory: 8000, Rights Definition Table: 24 hours * 78 different groups Automatic On-Off Yes, Offline Records Automatic sending to Online: Yes, Language: Turkish, Remote Update: Yes
HARDWARE FEATURES
Input Voltage: 8V - 28V, Display: YES, Communication: Wifi, CPU: 48MHz 32 Byte Cortex- M0, Buzzer: YES, Optical Input: YES, Solid State Relay: YES, RTC: YES, LED: YES, Operating Temperature (-20, +70)
RF FEATURES
RF Operating Frequency: 13.56 MHz, RF Reading Distance: 2- 10 cm, Card Support: MIFARE Classic 1K/4K, ID Reading Only (MIFARE, UltraLight, DesFire) Standard Support: ISO 14443 A/B
HARDWARE FEATURES |
|
|---|---|
| CPU : | 48MHz 32Bit Cortex-MO |
| Working Temperature: | -20, +70 |
| Input Voltage: | 8V-28V (Poe 8V-60V) |
| Fingerprint Reader: | Yes |
| Screen TFT: | 35x28 mm |
| Communication: | TCP/IP - Optional RS485, RS232 |
WORKING FEATURES |
|
| Device Transaction Capacity: | 35.000 |
| Blacklist: | 8.000 |
| Fingerprint Reader User Capacity : | 3.000 |
| Working Mode: | Online and Offline |
| Transaction Card Capacity: | 100.000 |
RADIO FREQUENCY FEATURES |
|
| Working Frequency: | 13,56 Mhz. |
| Reading Distance: | 0 ~ 10 cm |
| Supported Standards: | ISO 14443 A/B |
