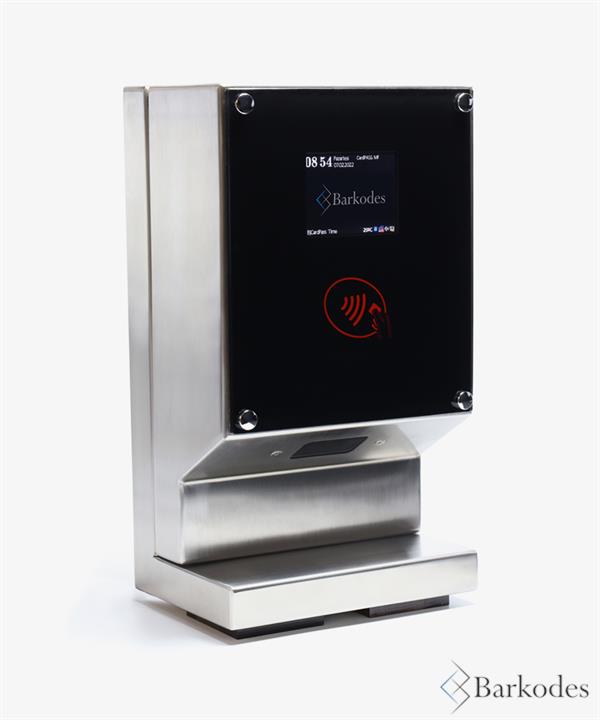

CardPass Barcode + Mifare Card Reader
CardPASS Card and Barcode Reader is designed for Payment Systems, Stadium Passage Systems, Theme Park Passage Systems, Personnel Attendance Control Systems, Access Control Systems and Dining Hall systems with its Card and Barcodes reading features. It has a reliable, accurate and excellent verification speed with its special algorithm. In particular, the smart and manageable card and barcode reader, which can work ONLINE or OFFLINE, has the feature of entry and exit.
HARDWARE FEATURES
Input Voltage: 8V-28V,Screen: TFT (320*240) 3.5', Ethernet: 10/100 Mbps, CPU: 120MHz 32Byte Cortex-M4, Keypad: YES (Touch), Buzzer, Optical Input, Solid State Relay, RTC, Temperature Sensor, Operating Temperature: (-20, +70), External Communication: (I2C,UART, SPI, GPIOx5, Analogx2)
RF FEATURES
RF Operating Frequency: 13.56 MHz, RF Reading Distance 2-10 cm, Card Support: MIFARE Classic 1K/4K, Standart Support ISO 14443 A/B,
OPERATING FEATURES
Working Mode: Online or Offline, Antipassback, Ticket and Card Access Modes, Sequential Reading Control, Zone Access Control with Card, User Memory: 100,000, Passing Movements Memory: 125,000, Device Movements Memory: 29,000, Permitted Person Registration Memory: 15,000, Blacklist Memory: 8,000, Rights Definition Table:24 Hours * 78 different groups, Automatic On-Off, Personal Message, Announcement Broadcast, Automatic sending of Offline Records Online, Language: Turkis/English, Theme Selection, Remote Update
