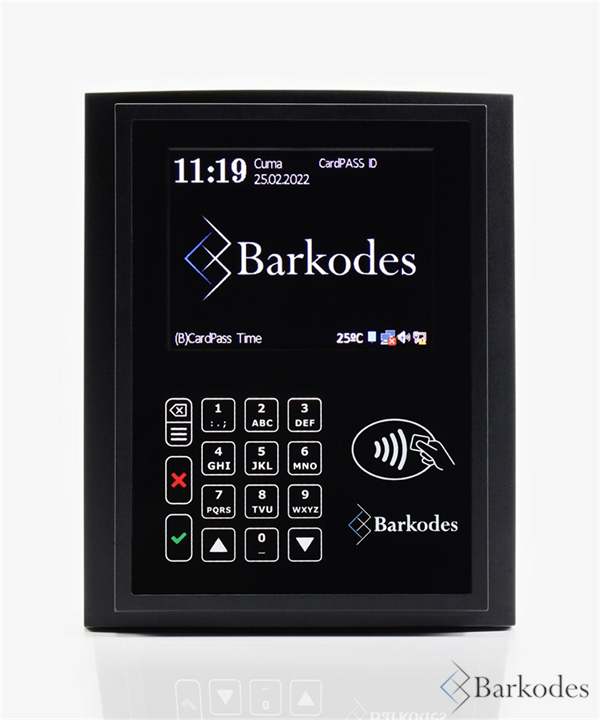

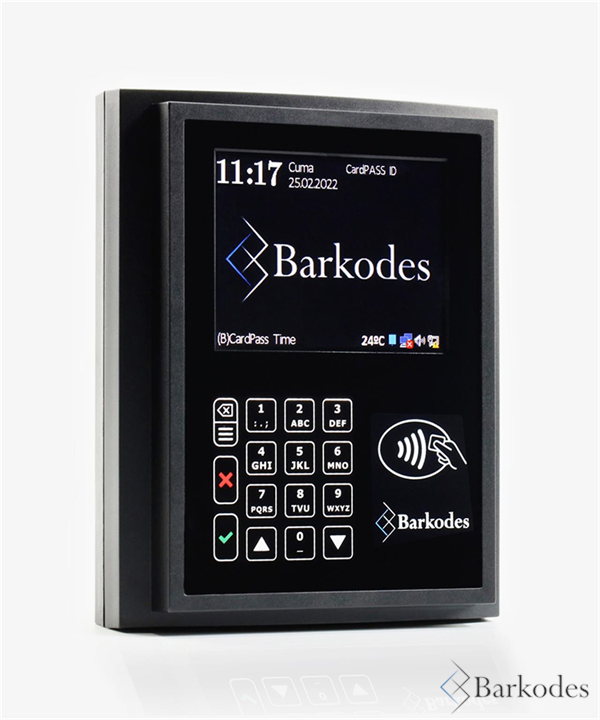

CardPASS Pro ''Card Reader with PIN''
HARDWARE FEATURES
Input Voltage: 8V-28V, Screen; TFT (320*240) 3.5', Ethernet: 10/100 Mbps, CPU: 120 MHz 32 Byte Cortex-M4, Keypad: YES (Touch), Buzzer, Optical Input, Solid State Realy, RTC, Temperature Sensor, Operating Temperature: (-20,+70), External Communication: (I2C, UART, SPI,GPIOx5, Analogx2)
RF FEATURES
RF Operating Frequency: 125 KHz or 13.56 MHz, RF Reading Distance: 2 - 10 cm, Card Support: Proximity or MIFARE Classic 1K/4K, Standard Support: ISO 14443 A/B,
OPERATING FEATURES
Working Mode: Online or Offline, Passing with Excuse Notification, Antipassback, Cards per Person: 3, Person Based Passing Modes, Sequential Reading Control, Zone Control Passing: Only with Card*, User Memory: 100,000, Passing Moves Memory: 125,000, Device Moves Memory: 29,000, Authorized Person Registration Memory: 15,000, Blacklist Memory: 8,000, Rights Definition Table: 24 hours * 78 different groups, Automatic On-Off, Personal Message, Announcement Broadcast, Automatic sending of Offline Records Online, Language: Turkish/English, Theme Selection, Remote Update
OPERATING FEATURES
Working Mode: Online or Offline, Psasing with Excuse Notification, Antipassback, Cards per Person:3, Person Based Passing Modes, Sequential Reading Control, Zone Control Passing: Only with Card*, User Memory: 100,000, Passing Moves Memory:125,000, Device Moves Memory:29,000, Authorized Person Registration Memory: 15,000, Blacklist Memory: 8,000, Rights Definition Table:25 Hours* 78 different groups, Automatic On-Off, Personal Message, Announcement Broadcast, Automatic sending of Offline Records Online, Language: Turkish/English, Theme Selection, Remote Update
HARDWARE FEATURES |
|
---|---|
Screen TFT: | (320*240) 3.5′ |
Communication: | TCP/IP - Optional RS485, RS232 |
CPU : | 120MHz 32 Bit Cotex M3 |
Working Temperature: | -20, +70 |
Input Voltage: | 8V-28V (Poe 8V-60V) |
RADIO FREQUENCY FEATURES |
|
Reading Distance: | 0 ~ 10 cm |
Supported Standards: | ISO 14443 A/B |
Working Frequency: | 13,56 Mhz. |
WORKING FEATURES |
|
Transaction Capacity: | 125.000 |
Device Transaction Capacity: | 29.000 |
Blacklist: | 8.000 |
Remote Updating: | Yes |
Working Mode: | Online and Offline |
