TürkçeOctoPASS Tentacle Mifare Touch ''Card + Password + TFT Screen''

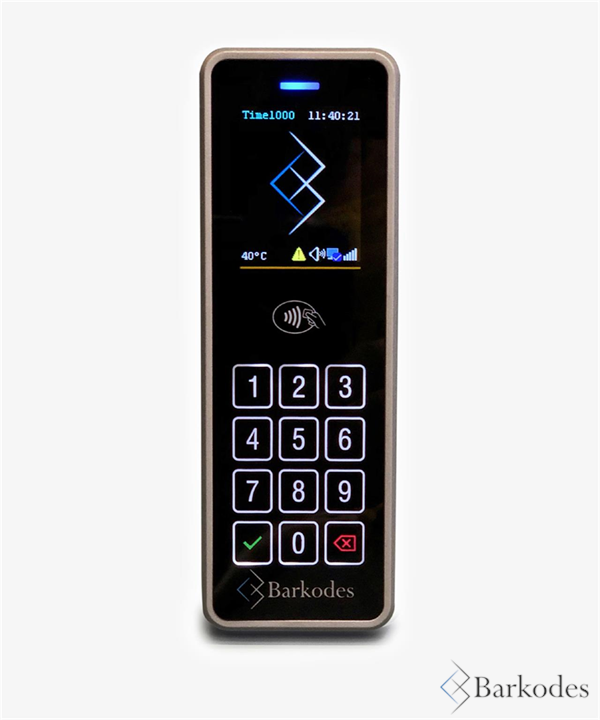

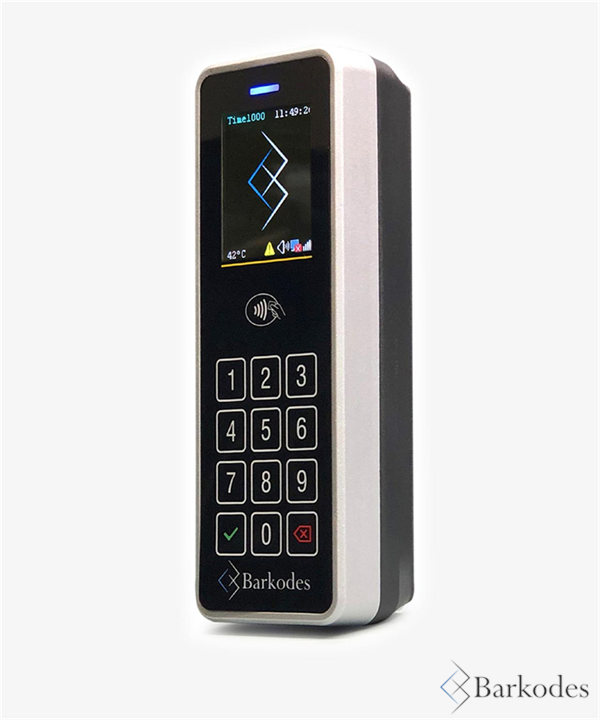

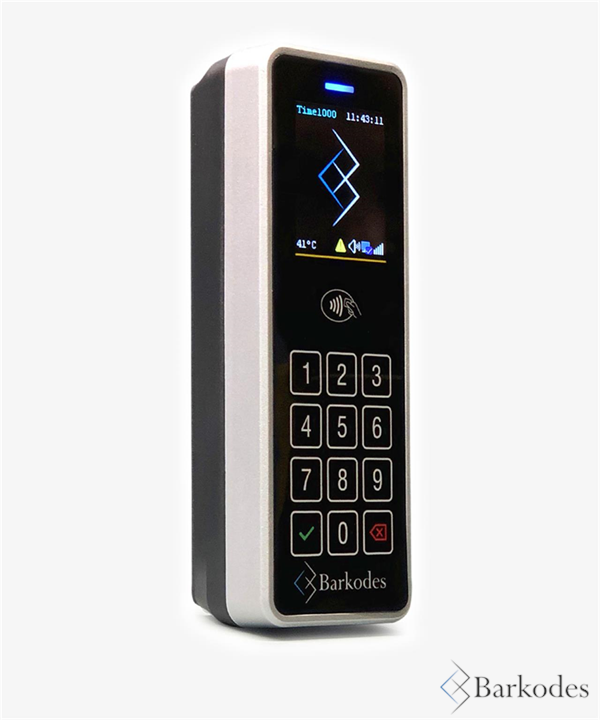

OctoPASS Tentacle Mifare Touch ''Card + Password + TFT Screen''
The OctoPASS Tentacle Keypad Card Reader is designed for Time and Attendance (T&A) Systems, Access Control Systems, and Cafeteria Systems with its card reading features.
It possesses reliable, precise, and excellent verification speed thanks to its special algorithm. This smart and manageable reader, which operates ONLINE, is uniquely the only reader system in the OctoPASS ecosystem capable of granting entry and exit to your facility based on the defined and approved shifts in the T&A program.
OPERATING FEATURES
Working Mode: Online Only, Antipassback: Yes, Sequential Reading Control: Yes, Language: Turkish, Remote Update: Yes
HARDWARE FEATURES
Input Voltage: 8V - 28V, CPU: 48MHz 32 Byte Cortex - M0, Screen: YES, Communication:RS485, Buzzer: YES, LED: YES, Device Security Alarm: optional, Operating Temperature (-20, +70)
RF FEATURES
RF Operating Frequency: 13.56 MHz, RF Reading Distance: 2 - 10 cm, Card Support: MIFARE Classic 1K/4K, ID Reading Only (MIFARE, UltraLight, Desfire) Standard Support: ISO 14443 A/B
