TürkçeOctoPASS Prime Control Panel ''4 Reader, 12 Optic, 4 Output''

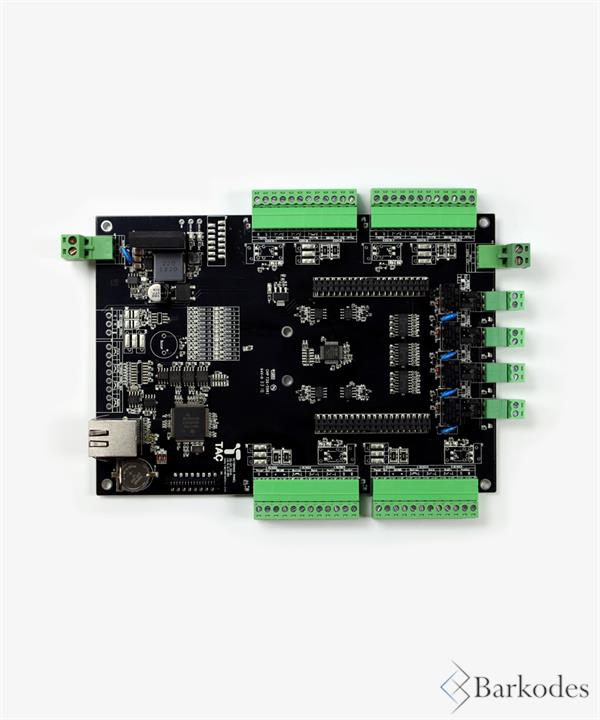

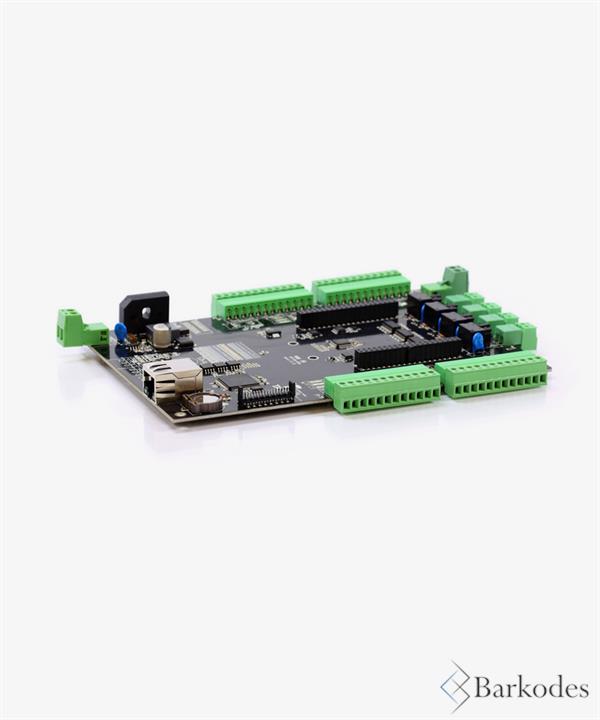

OctoPASS Prime Control Panel ''4 Reader, 12 Optic, 4 Output''

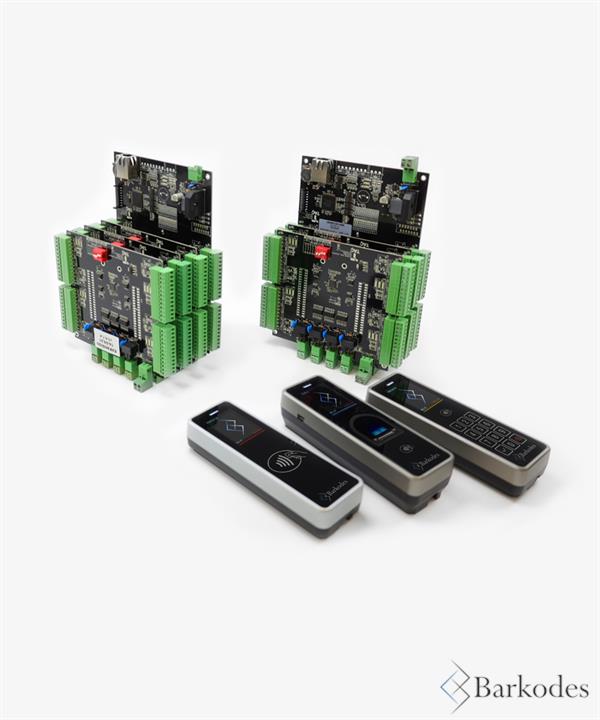

4,8,12 readers can be connected with the OctoPASS Prime Access Control Panel and expansion card. Supports 16 and 24 readers for special projects. Biometric, Card Reader, Keypad readerconnection is provided. In addition to being smart and manageable, especially when it works ONLINE or OFFLINE, its distinguishing feature is that it can perform anti-passback even offline when the online communication line is broken.
HARDWARE FEATURES
Input voltage: 8V - 28V, Display: Optional*, Ethernet: 10/100 Mbps, External Reader: 4 - 8 - 12 (Multiple Line), External Reader Input: Button and Door Information, CPU: 120MHz 32 Byte Cortex - M4, SD Card: Optional*, Optical Input: YES, Mechanical Relay: YES, Solid State Relay: Optional*, RTC: YES, LED: YES, temperature Sensor: YES, Operating Temperature (-20, +70),
OPERATING FEATURES
Working Mode: Online or Offline, Antipassback: YES, Passing with Excuse Notification: YES, Cards Per Person: 3, Sequential Reading Control: YES, Zone Control Passing: Optional*, User Memory: 88,000, Passing Moves Memory: 125,000, Device Moves Memory: 14,500, Permitted Person Registration Memory: 15.000, Blaclist Memory: 8.000, Rights Definition Table: 24 hours * 78 different groups, Automatic On-Off: YES, Automatic sending of Offline Records online: YES, Language: Turkish/English, Remote Update: YES
4,8,12 readers can be connected with the OctoPASS Prime access control panel and expansion card. Supports 16 and 24 readers for special projects. Biometric, Card Reader, and Keypad reader connection is provided In addition to being smart and manageable it can work ONLINE or OFFLINE, its distinctive feature is that can perform anti-passback even offline when the online communication line is broken.
